Tools > Customize > Toolbars

This topic contains two tables. The information in the table:

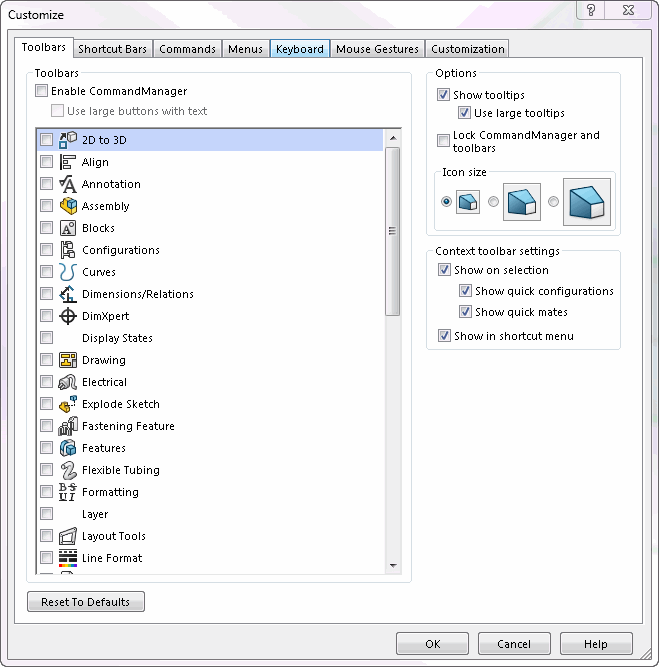

  • appearing immediately after the screen capture of the dialog corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.




Get/Set Methods

Return Value or <Value> or <OnFlag>



Options - Icon size


ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swButtonSize, swButtonSize_e.<Value>)

See swButtonSize_e for valid options


Obsolete Enumerators




Obsolete; specified whether to use operating system scale


Obsolete; specified the text size
