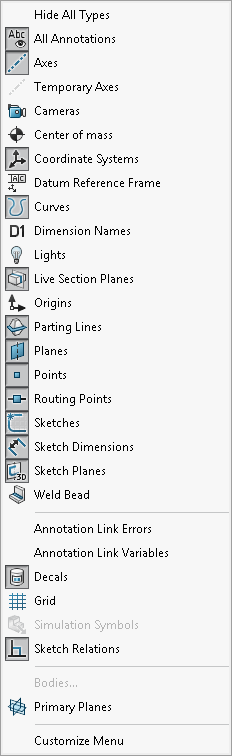

View > Hide / Show





Setting

Get/Set Methods

Return Value or <Value>

Comment

All Annotations

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayAllAnnotations, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayAllAnnotations, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display all annotations; for assemblies only

Axes

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayAxes, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayAxes, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display axes

Temporary Axes

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayTemporaryAxes, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayTemporaryAxes, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display temporary axes

Cameras

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCameras, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCameras, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display cameras


Component Annotations

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCompAnnotations, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCompAnnotations, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display component annotations; for assemblies only

Coordinate Systems

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCoordSystems, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCoordSystems, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display coordinate systems

Curves

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCurves, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCurves, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display curves

Datum Reference Frame

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayDatumCoordSystems, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayDatumCoordSystems, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display datum coordinate systems

Dimension Names

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swShowDimensionNames, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swShowDimensionNames, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display dimension names

Hide All Types

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swViewDisplayHideAllTypes, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swViewDisplayHideAllTypes, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to hide all items in table

Lights

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayLights, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayLights, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display lights

Live Section Planes

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayLiveSections, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayLiveSections, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display live sections

Origins

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayOrigins, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayOrigins, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display origins

Parting Lines

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayPartingLines, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayPartingLines, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display parting lines

Planes

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayPlanes, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayPlanes, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display planes

Points

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayReferencePoints2, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayReferencePoints2, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display reference points

Routing Points

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayRoutePoints, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayRoutePoints, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display routing points

Sketches

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplaySketches, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplaySketches, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies to display sketches

Simulation Symbols

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplaySimulationSymbol, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplaySimulationSymbol, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display simulation symbols (for SOLIDWORKS Simulation only)

Sketch Dimensions

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swHideShowSketchDimensions, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swHideShowSketchDimensions, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display sketch dimensions

Sketch Planes

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplaySketchPlanes, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplaySketchPlanes, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display sketch planes

Weld Bead

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayWeldBead, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayWeldBead, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display weld beads

Decals

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayDecals, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayDecals, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display decals

Grid

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swGridDisplay, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swGridDisplay, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display a grid

Sketch Relations

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swViewSketchRelations, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swViewSketchRelations, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display sketch relation symbols
