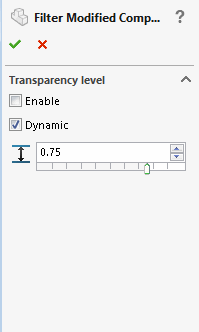

View > Modify > Filter Modified Components



Setting

Get/Set Methods

Return Value
or

<Value>
or
<OnFlag>

Comment

Transparency level - Enable

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swQuickViewTransparencyEnabled)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swQuickViewTransparencyEnabled, <OnFlag>)

Boolean value

Specifies whether to activate the transparency for unmodified components of assemblies opened in Large Design Review

Transparency level - Dynamic

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swQuickViewTransparencyDynamic)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swQuickViewTransparencyDynamic, <OnFlag>)

Boolean value

Specifies whether to update the transparency level in the graphics area when the slider is moved in the Transparency Level PropertyManager page

Transparency level - Level ranges from 0 to 1

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swQuickViewTransparencyLevel)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swQuickViewTransparencyLevel, <Value>)

Double value

Specifies the value to which to adjust the transparency for unmodified components in assemblies opened in Large Design Review
