Example: Deform Using Fixed Curves/Edges/Faces

All examples use the same Deform Distance

and Deform Radius

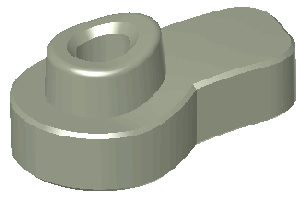

Before deform	Deform with no fixed entities selected

Preview of deform with Fixed Curves/Edges/Faces selected	Deform with fixed edges selected
