Datum Target PropertyManager

Attach a datum target and associated symbol to a model face or edge.

To open the Datum Target PropertyManager:

Click Datum Target (Annotation toolbar), or click Insert > Annotations > Datum Target.

Style

Define Style.

Settings

Target symbol. Select the target symbol style:

Target Symbol
Target symbol with area size outside Creates a leader to the balloon.
No target symbol
Horizontal Movable Creates movable symbol that only appears left or right of the circle.
Rotational Movable Creates movable symbol that always points at the datum target.
Not Movable Turns off movable symbol.

Target area. Select the target area display:

x target area (point)
Circular target area Applies crosshatch to the circular target area.
Rectangular target area Applies crosshatch to the rectangular target area.
Do not display target area
Target area size Specify Width and Height (for rectangles) or Diameter (for X's and circles).

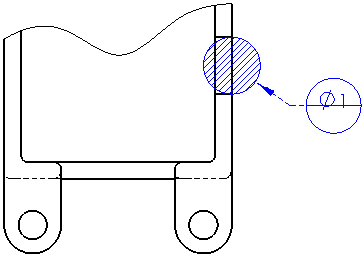

The value in the first field (2) controls the diameter of the target area circle.

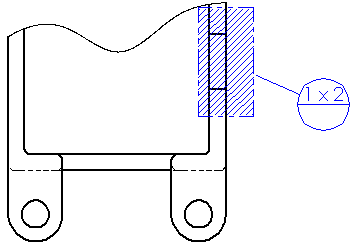

The value in the first field (1) controls the rectangle width. The value in the second field (2) controls the height.

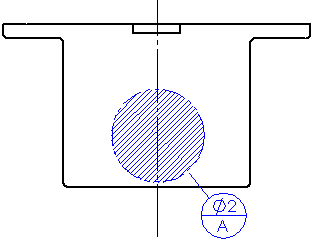

Datum references Specify up to three references (balloons). The datum reference appears in the lower half of the balloon.

Leader

Select a leader style to control bends, leader font, and arrowhead styles:

Bent, solid leader
Bent, dashed leader
Straight, solid leader
Straight, dashed leader
  Select an Arrow style.


Layer

In drawings with named layers, select a layer.
