Along X Inferred
|
![sketch_relation_alongX.gif](jbw1450452311031.image) Horizontal line sketched along X axis. Applies to 3D sketches.
|
Along Y Inferred
|
![sketch_relation_alongY.gif](edd1450452311570.image) Vertical line sketched along Y axis. Applies to 3D sketches.
|
Along Z Inferred
|
![sketch_relation_alongZ.gif](med1450452312076.image) Horizontal line sketched along Z axis. Applies to 3D sketches.
|
Coincident Inferred
|
![sketch_relation_coincident.gif](gff1450452312625.image) Second circle sketched coincident to first circle.
|
Colinear Added
|
![sketch_relation_collinear.gif](gbb1450452313666.image) Colinear relation added to the first two horizontal lines.
|
Concentric Added
|
![sketch_relations_concentric.gif](boi1450452314127.image) |
Coradial Added
|
![sketch_relation_coradial.gif](ore1450452314612.image) Coradial relation added to the inner arcs.
|
Equal Added
|
![sketch_relation_same_length.gif](hmp1450452315155.image) Equal relation added to all inner circles. This way, you set the diameter for only one circle.
|
Equal Curvature Added
|
![sketch_relation_equal_curvature.gif](doe1450452315713.image) The rate of change of the slope (curvature) is the same at the point shared between the curves (C2 continuous).
|
Equal Slots Added
|
![sketch_relation_equal_slots.gif](qot1450452316348.image) |
Fix Added
|
![sketch_relation_fix.gif](rmm1450452316940.image) Fixed relation added to point.
|
Fix Slot Added
|
![sketch_relation_fix_slot.gif](nit1450452317553.image) |
Horizontal Added
|
![sketch_relations_horizontal-added.gif](xxt1450452318255.image) Horizontal relation added to spline handles.
|
Intersection Inferred or added
|

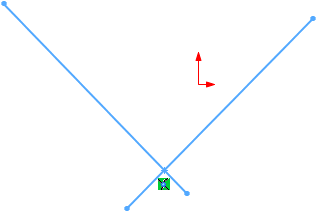

![sketch_relation_intersection.gif](jxp1450452318781.image) Relation added at the intersection of the point and two lines. If you sketch the lines and points so they intersect, the relation is inferred.
|
Merge Added
|
![sketch_relation_after_merge.gif](dvh1450452319289.image) The endpoint of the line and the point on the rectangle are merged to create one point.
|
Midpoint Inferred or Added
|
![sketch_relation_midpoint.gif](ekz1450452319804.image) Construction line sketched from the midpoint of the diagonal line.
|
Normal Added
|
![sketch_relation_normal.gif](vpy1450452320351.image) Normal relation added between the line and plane.
|
Offset Inferred
|
![sketch_relation_offset.gif](rne1450452320872.image) Larger rectangle is offset by 10 from the smaller rectangle using the Offset Entities tool.
|
On Edge Inferred
|
![sketch_relation_on_edge.gif](mci1450452321411.image) Edges of the solid are projected to the sketch plane using the Convert Entities tool.
|
On Plane Inferred and Added
|
![sketch_relation_on_plane.gif](hpm1450452321963.image) Any geometry sketched on a plane.
|
On Surface Inferred
|
![sketch_relation_on_surface.gif](cro1450452322542.image) Point sketched on a surface.
|
Parallel Inferred
|
![sketch_relations_parallel.gif](ngq1450452323108.image) Two lines sketched with parallel relation.
|
Parallel YZ Added
|
![sketch_relation_parallelYZ.gif](onz1450452323669.image) Parallel relation added to the 3D line and front plane.
|
Parallel ZX Added
|
![sketch_relation_parallelZX.gif](omt1450452324299.image) Parallel relation added to the 3D line and front plane.
|
Perpendicular Inferred
|
![sketch_relations_perpendicular.gif](eco1450452324845.image) Second line sketched perpendicular to first line.
|
Pierce Added
|
![sketch_relation_pierce.gif](mil1450452325374.image) Pierce relation added between sketch point and vertical line.
|
Symmetric Inferred or Added
|
Relations added using the Mirror Entities or Dynamic Mirror tool.
|
Tangent Added
|
![sketch_relation_tangent.gif](azv1450452326531.image) Tangent relation added to two splines.
|
Tangent to Face Added
|

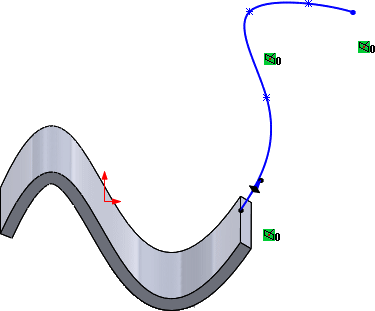

![sketch_relation_tangent_to_face.gif](dzq1450452327094.image) Same slope at the edge of intersection between the face and spline (C1 continuous).
See Tangent to Face Relations with Splines.
|
Traction |
See Using Traction and Belts for Layout Sketches. |
Vertical Inferred
|
![sketch_relation_vertical.gif](xqm1450452327732.image) Circle sketched with center inferred to sketch origin.
|
