Editing Sheet Metal Operations

You can edit manufacturing operations in the Costing template or in the CostingManager.

For all operations, you can apply a cost override.

If you edit the Costing template, all parts that are evaluated using this template are affected. If you edit the CostingManager, only the current part is affected.

To edit a sheet metal operation in the CostingManager:

  1. Expand an item in the CostingManager.

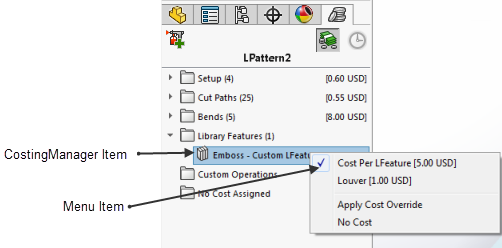

  2. Right-click and click any of the following. For example:

CostingManager Item Menu Item Description
Setup FM_folder.gif folder Select Setup Cost Adds an existing setup cost to the Setup FM_folder.gif folder.
  Add Setup Cost Creates a new setup cost in the Setup FM_folder.gif folder called Setup Cost n Costing_Setup_Cost.gif.
Items in the Setup FM_folder.gif folder Remove Setup Cost Removes the item from the Setup FM_folder.gif folder.
Items in the Cut Paths FM_folder.gif folder Cutting machines defined in the template Sets a different cutting tool. For example, you might have two different laser machines from which to choose.
Items in the Bends FM_folder.gif folder Brake machines defined in the template Sets a different brake machine for creating bends in the part.
Items in the Library Features FM_folder.gif folder Library features defined in the template Sets a different library feature as a substitute for the one that was automatically selected.
Custom Operations FM_folder.gif folder Add Custom Operation Creates a new custom operation.
Items in the Custom Operations FM_folder.gif folder Edit Custom Operation Edits a custom operation.
  Remove Custom Operation Removes the item from the Custom Operations FM_folder.gif folder.
Items in the No Cost Assigned FM_folder.gif folder Library features defined in the template Assigns the item as a library feature.
