Entering Structure System Mode

Structure System mode is the design environment where you create an advanced welded structure system.

To enter Structure System mode:

  1. Open system_dir:\Users\Public\Public Documents\SOLIDWORKS\SOLIDWORKS 2019\samples\whatsnew\parts\structure_system.sldprt
  2. Click Insert > Structure System > Structure System .
    You can also enter Structure System mode from the Structure System tab in the CommandManager.

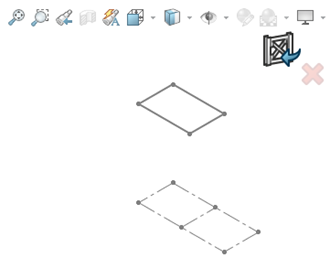

The Structure System mode icon appears in the Confirmation Corner of the graphics area.
