You can modify existing angular running dimensions.
To modify angular running dimensions:
- In the Dimension PropertyManager on the Leaders tab, make sure Display as chain dimension is selected.

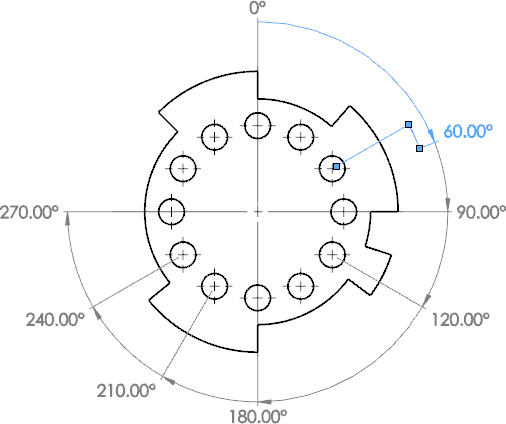

- In the graphics area, right-click an angular running dimension that is on the model and click Break Alignment.
- Drag the running dimension chain to move it.
All the running dimensions on the chain move except for the dimension where the alignment is broken.
- Right-click an angular running dimension that is on the model and click Display Options, then choose from these options:
| Option |
Description |
|---|
| Align Running Dimension |
Aligns all the running dimensions. |
|---|

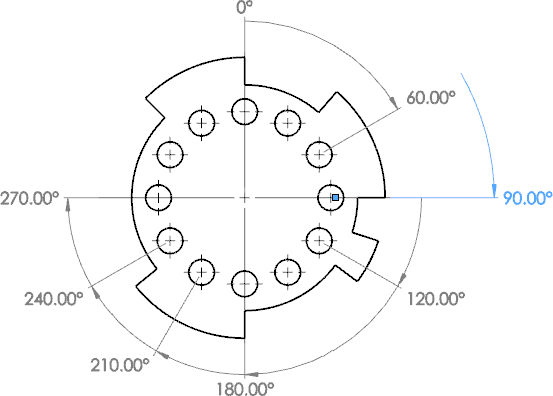

| Jog |
Bends the leader line of a dimension and allows you to reposition the dimension.
|
|---|
| Re-Jog Running Dimension |
Applies the automatic jogging to the running dimensions. |
|---|

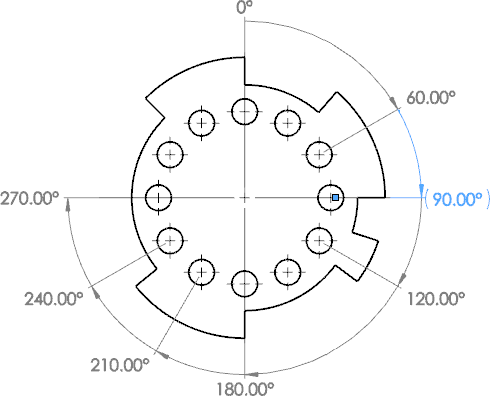

| Show Parentheses |
Adds parentheses around the selected dimension.
|
|---|

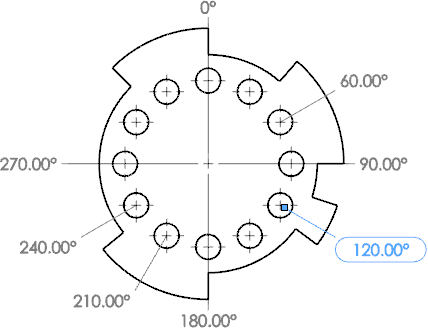

| Show as Inspection |
Shows the selected dimension as an inspection dimension.
|
|---|
