You can add inline components, such as shrink wraps and boots, to a route
assembly and align them to the route.
To add inline
components to routes:
-
Drag an inline component from
the Routing Design Library.
The Select a Configuration
dialog box or Configure Component
PropertyManager appears, depending on the options selected in the Route Properties PropertyManager. The name of the
inserted component appears in the Parts
input box.
-
In the Align Components
PropertyManager, click in Current Selections.
-
In the graphics area, select:
-
A route spline.
-
An edge, axis, or point of the component to align.
-
Click Apply.
The applied selections appear in the
Route Alignments input box.
You
can right-click any input box and click Delete or Remove
Selection to clear the selections.
|

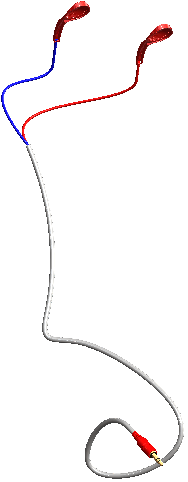

Assembly without inline
components |
|

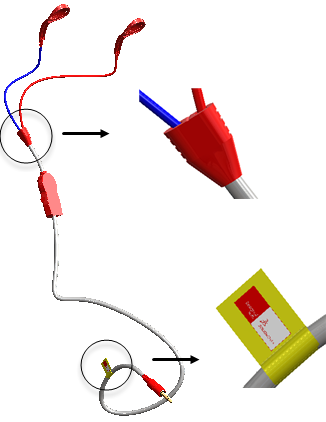

Assembly with inline
components |
