Table PropertyManager

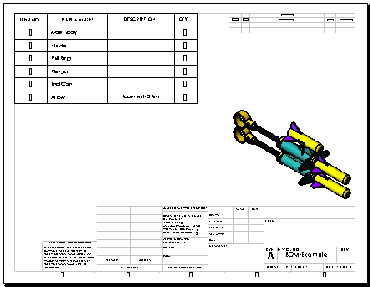

You can specify formatting for a General Table, Bill of Materials, Hole Table, Revision Table, or Weldment Cut List.

To specify formatting for a table:

  1. Click the upper left corner of a table.
  2. Specify the formatting described below, then click .
The items listed below are not applicable to all tables.

Table Position

The stationary corner controls the direction in which the table expands when adding new columns or rows.

Set the Stationary corner to:

Top Left New columns extend to the right and new rows extend below the anchor point.
Top Right New columns extend to the left and new rows extend below the anchor point.
Bottom Left New columns extend to the right and new rows extend above the anchor point.
Bottom Right New columns extend to the left and new rows extend above the anchor point.


Attach to anchor point

Attaches the specified corner to the table anchor.

When you do not attach a table to an anchor point, you can drag it to endpoints or lines in the sheet format.
The Stationary corner option is not available when you first create the table. If the table is anchored on creation, the stationary corner is automatically selected on the drawing sheet in the quadrant nearest the table anchor.

Header

Title Edit the table header title if Display title is selected.
Display title Displays the text in Title in a header row across the width of the table.
Position Set the title location to Table Header Top or Table Header Bottom .

Border

Box Border Sets a line thickness for the outside border of the table.
Grid Border Sets a line thickness for the inner gridlines of the table.

Layer

In drawings with named layers, select a layer. The table assumes the layer color.

Text Format

All uppercase Select to specify that all characters in the table are uppercase.
