Creating Translated Move Face Features

Open a model.
Right-click any CommandManager tab and click Tabs > Direct Editing to activate this tab.
Do one of the following:
- Right-click the face and click Move Face.
- On the Direct Editing CommandManager tab, click Move Face and select the face.
The triad appears. A graphical pop-up toolbar appears to help you select connected faces.
In the PropertyManager, under Move Face, select Translate.
Click the pop-up toolbar image shown to select all co-planar faces.

If the pop-up toolbar does not appear, clear the selected face and reselect it.
Specify the distance:
- Select an Edge Condition in the PropertyManager and specify the parameters.

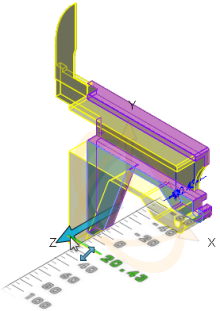

- Drag the triad arm shown away from the face.

  A ruler appears to help you drag a discrete distance. The selected faces are translated by that distance.
Click .
