Example of Setback Fillet Preview

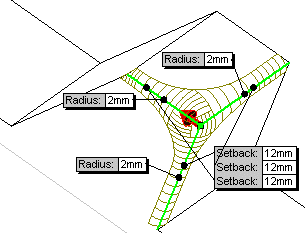

Setback fillet shown with Full preview, and with the same setback Distance of 12mm applied to all three edges.

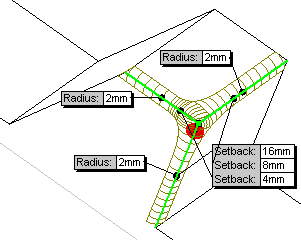

Setback fillet shown with Full preview, and with a different setback Distance applied to all three edges.

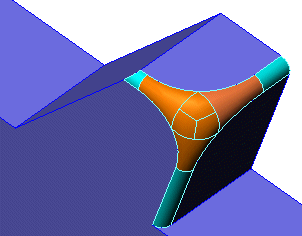

Setback Distance uniform for all edges (12mm)

Setback Distance different for all edges (4mm, 8mm, and 12mm)
