Cosmetic Pattern PropertyManager

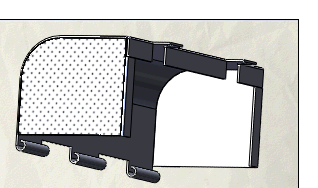

The cosmetic pattern feature allows you to cosmetically define and display patterns of holes instead of showing fully-tessalated solid models. Rebuild time is greatly reduced because pattern geometry is only cosmetic.

You can apply cosmetic patterns only to planar, parallel faces.





You can view cosmetic patterns in drawings with shaded views while RealView is on.

To create cosmetic patterns:

  1. From the Task Pane, select the Appearances/Scenes tab.

  2. Under Appearances, click Miscellaneous, RealView Only Appearances, then double-click cosmetic hole pattern or drag it into the graphics area.

You need to pre-select the face for other Appearances. Pre-selection does not work for cosmetic patterns.

  1. In the PropertyManager, select a face for Fill Boundary .

  2. Under Pattern Layout

    1. Select a layout.

    2. Set the spacing options.

    3. Select an edge to determine the pattern direction.

  3. Under Seed Types:

    1. Select a seed type.

    2. Set the size options.

  4. Click .

PropertyManager Options

Fill Boundary

Fill Boundary. Defines the area to fill with the pattern. Select sketches, planar curves on faces, a face, or co-planar faces. If you use a sketch for the boundary, you may need to select the pattern direction.

Pattern Layout

Determines the layout pattern of the instances within the fill boundary. Select a customizable shape to pattern. Pattern instances are laid out concentrically from the seed feature.

Perforation. Creates a grid for a sheet metal perforation-style pattern.

Square. Creates a square-shaped pattern.

Set these options:

  • Instance Spacing or . Sets the distance between the centers of instances.

  • Stagger Angle . Sets the stagger angle between rows of instances, starting at the vector used for pattern direction.

  • Loop Spacing . Sets the distance between loops of instances (using centers).

  • Pattern Direction or . Sets the direction reference. If you do not specify a reference, the system uses the most appropriate reference (for example, the longest linear edge of the selected region).

Seed Types

Select a seed type to create a cut shape. Set size and placement options.

  • Circle

  • Square

  • Diamond

  • Polygon
