Bend Allowance Value

You can specify an explicit bend allowance for any sheet metal bend by entering the value when you create the bend.

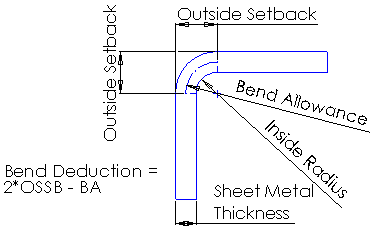

NOTE: By definition, the bend allowance is the arc length of the bend as measured along the neutral axis of the material.
