Bend Deduction Value

You can specify an explicit bend deduction for any sheet metal bend by entering the value when you create the bend.

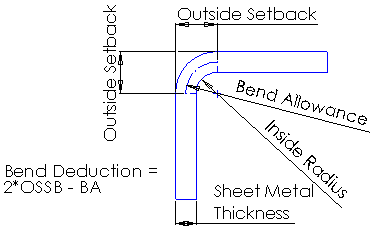

NOTE: By definition, the bend deduction is the difference between the bend allowance and twice the outside setback.

Search 'Bend Deduction Value' in the SOLIDWORKS Knowledge Base.
