Editing Scenes
You can add, remove, or modify scenes associated and saved with model
files.
To add scenes:
You can add scenes using:
To remove scenes:
In the FeatureManager design tree, expand Lights, Cameras and Scene
.
Click Scene
and press Delete.
You can replace scenes without
deleting existing scenes. Parameters are not retained in replacement scenes.
To modify scenes:
In the FeatureManager design tree, expand Lights, Cameras and Scene .
Double-click Scene
to display the Edit
Scene PropertyManager.
Under Floor Location:
Select a planar
face to flip the floor about the selected model geometry for Position
by selection.
|
|
|
|
When you select Position
by selection, you need to reposition the model relative to the
floor |
Click Flip
floor direction
to make the ceiling the floor.

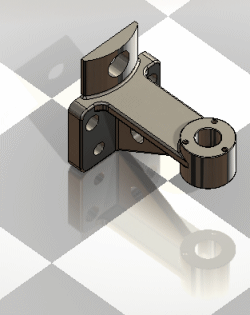

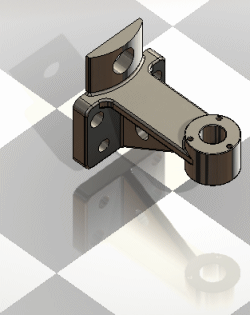

Set a value for
Offset.
Set a value for
Rotation.
Under Scale,
clear Auto resize, and set values
for Width, Depth,
and Height to adjust the floor and wall area.
Under Environment
Rotation, set a value to rotate the background and reflection
on the model.
Click
.
