Zebra Stripes on Boundaries

You can visually determine what type of boundary exists between surfaces by using zebra stripes.

Contact

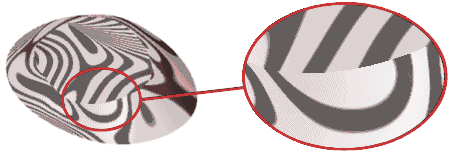

Zebra stripes do not match at the boundary.

Tangency

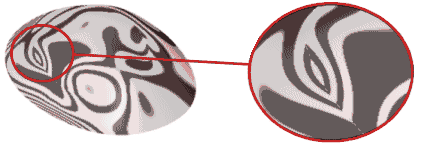

Zebra stripes match at the boundary, but there is an abrupt change in direction.

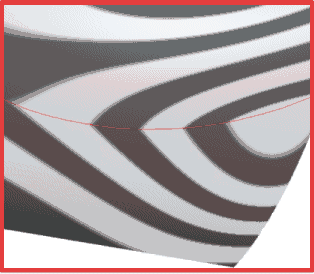

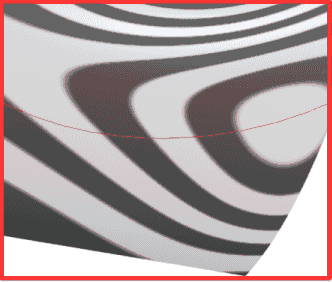

Curvature Continuous

Zebra stripes continue smoothly across the boundary. Curvature continuity is an option when creating face blend fillets.

Fillet

Tangent

Curvature Continuous
