Neutral Plane

The Neutral Plane is the plane or face that you choose to determine the pull direction when creating a mold.

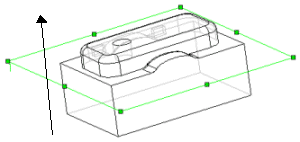

The Z axis direction of this chosen plane is the direction in which the part ejects from the mold. Reverse direction changes the direction of the draft, not the direction of the pull. In the example below, Plane 1 is the Neutral Plane, with the arrow indicating the pull direction.
