Finishing the Interlock Surface

Lofted Surface

Ruled Surface

Use Ruled Surface, rather than
Extend Surface to maintain the
correct taper.

Extend Surface

To facilitate Trim Surface.

Trim Surface , using Mutual
to remove material adjacent
to the horizontal ruled surface.

Knit Surface after trim.

Create a plane, parallel to Top
Plane.

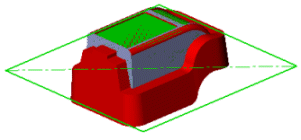

Sketch rectangle to create a
planar surface.

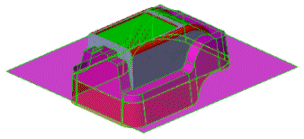

Planar Surface

Trim Surface , using Standard
to trim below the planar surface.

After trim, the planar surface is ready
as the basis for tooling split operation.
