The table below shows the effects of different options on the original parent view. All images are in the ISO standard.

Original parent view:

Style	Circle	Profile

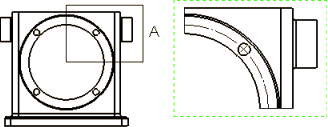

Per Standard

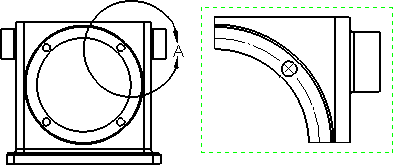

Broken Circle		Not available

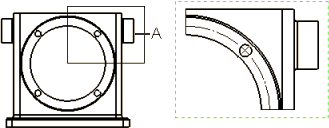

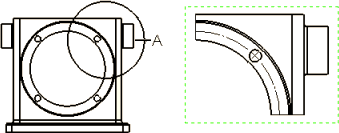

With Leader

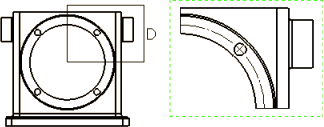

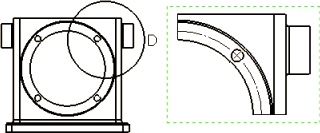

No Leader

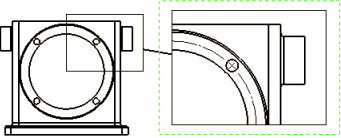

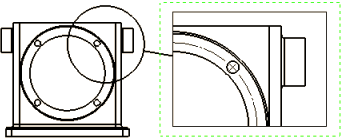

Connected
