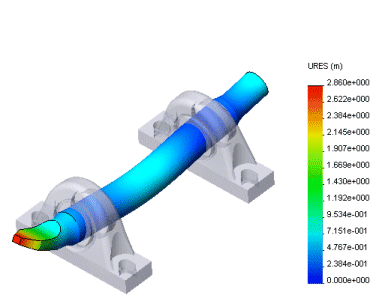

Showing Hidden or Excluded Bodies in Plots
When plotting results of assemblies with hidden or excluded bodies,
you can view the results on the other components in the context of the
whole assembly by showing the hidden or excluded bodies in translucent
colors with controlled levels of transparency.
To show hidden bodies in display plots:
Plot the desired result in an assembly document
that has one or more hidden components.
Right-click the plot icon and select Settings
.
The Settings
PropertyManager appears.
Select Show hidden
bodies.
Under Show hidden
bodies, select:
Translucent
(Single color). To display all hidden parts in a single color of
your choice. You can adjust the transparency by dragging the slider.
Translucent
(Part colors). To display all hidden parts in their shaded mode
colors. You can adjust the transparency by dragging the slider.
Click
.
To show excluded bodies in display plots:
Plot the desired result in an assembly document
that has one or more excluded bodies.
Right-click the plot icon and select Settings
.
The Settings
PropertyManager appears.
Select Show Excluded
bodies.
Under Show excluded
bodies, select:
Translucent
(Single color). To display all excluded parts in a single color
of your choice. You can adjust the transparency by dragging the slider.
Translucent
(Part colors). To display all excluded parts in their shaded mode
colors. You can adjust the transparency by dragging the slider.
Click .
