Exporting Sheet Metal Parts to DXF or DWG Files

The new DXF/DWG Output PropertyManager exports sheet metal bodies to .dxf or .dwg files. You can also export entities such as bend lines, sketches, and forming tools. A preview shows your selections and lets you remove unwanted entities such as holes or cutouts.

  1. With a sheet metal part open, open the PropertyManager by doing one of the following:
    • Saving the part (File > Save As) to a dxf or dwg file type.
    • Right-clicking the Flat-Pattern feature and clicking Export to DXF/DWG.
  2. Click Save.

    The PropertyManager appears.

  3. Select the bodies and entities to export and click .

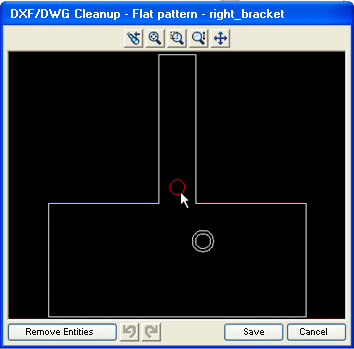

    The DXF/DWG Cleanup preview window appears.

  4. To remove entities, select them and click Remove Entities.
  5. Cancel the preview and return to the PropertyManager if you want to make changes.
Parent topic: Sheet Metal
