Display Pane

In the Display Pane, you can view various display settings in part and drawing documents. In assemblies and parts, you can also apply changes to the settings.

To expand or collapse the Display Pane:

  1. Click at the top of the FeatureManager pane (to the right of the tabs) to expand the Display Pane.

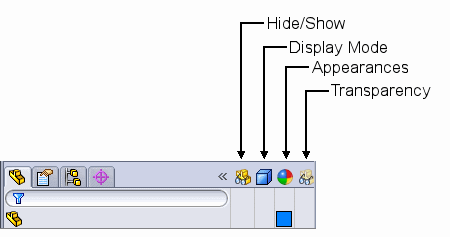

The Display Pane appears to the right of the FeatureManager pane:

  1. Click to collapse the Display Pane.

In part documents, the display settings you can view include:

Display Setting




For bodies. Indicates the body is visible. You can also hide or show sketches or planes.

For bodies. Indicates the body is hidden.


For part, bodies, and features. Shows color, or blank if no appearance has been applied.


For part, bodies and features. Indicates that transparency has been applied in the Appearances PropertyManager, or blank if no transparency has been applied.

Appearance callouts display the appearances of faces, features, bodies, and the part and are a shortcut to editing appearances.

For drawing views and bodies, the display settings you can view include:

Display Setting




, , , etc.

Drawing view only. Indicates the view is visible.

, , , etc.

Drawing view only. Indicates the view is hidden.

Display Mode


Hidden Lines Visible

Hidden Lines Removed

Shaded With Edges


For assembly documents, see Display Pane in Assemblies.
