Flyout FeatureManager
Design Tree
The flyout FeatureManager design tree allows you to view both the FeatureManager design tree and the PropertyManager at the same time. Sometimes
it is easier to select items in the flyout FeatureManager design tree
than in the graphic. In addition, you can hide, change the transparency
of, go to, or zoom to selected items. You cannot suppress items or roll
back the build.

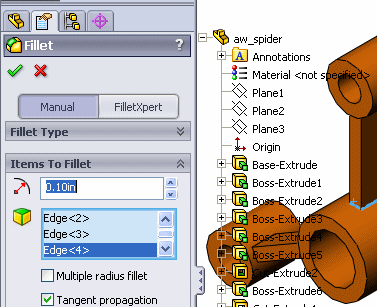

The flyout FeatureManager design
tree automatically appears when a PropertyManager is active. To expand
it:
If Use
transparent flyout FeatureManager in parts/assemblies is selected
in Tools, Options,
System Options, FeatureManager, the
flyout FeatureManager design tree is transparent so you can see the model
underneath it.
![](../art_local/flyout_FM.gif)
