Using a Model Edge

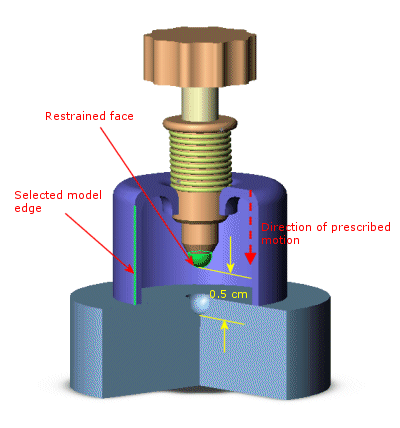

You can use a straight  model edge as a reference to apply restraints. You can prescribe the translation in the direction of the edge. For shell meshes, you can also specify rotation about the edge.

The following table summarizes the attributes of this restraint type:

Attribute

Value

Possible DOFs for solids

1 translation

Possible DOFs for shells and beams

1 translation and 1 rotation

Possible DOFs for trusses

1 translation



3D symbol

translation

rotation

Selectable  entities

Vertices, edges, faces and beam joints

Translations

Along edge

Rotations (for shells and beams only)

About edge
