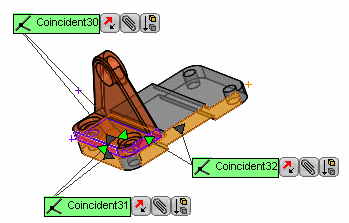

For problem mates, error and warning icons are displayed in the callouts.
![](../../../../AllArt/art_otherUI/mate_callout_warning.gif) |
Warning |
The mate is satisfied, but involved in over defining the assembly. |
![](../../../../AllArt/art_otherUI/mate_callout_error.gif) |
Error |
The mate is not satisfied.You can click Force Mate ![](../../../../AllArt/art_otherUI/mate_callout_force_mate.gif) in the callout to force the mate to solve, thus breaking another mate. You can perform iterations of forcing mates to help you discover the problem mate.
|
