Example of Extruding in 2D to 3D Conversion

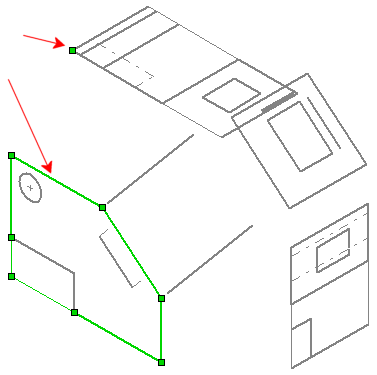

Select the sketch entities (in the Front sketch at the lower left) as the basis for the base extrusion.

Hold Ctrl and select a starting point (upper left vertex in the Top sketch).

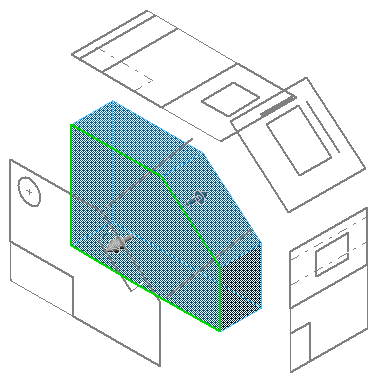

Click in the graphics area to establish the direction of the extrusion.

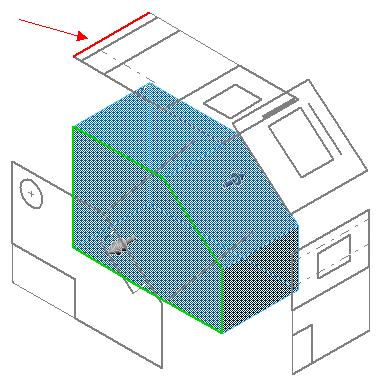

In the Base-Extrude PropertyManager, click Depth and select the line shown to specify the depth of the extrusion.

Search 'Example of Extruding in 2D to 3D Conversion' in the SOLIDWORKS Knowledge Base.
