Example of Area Hatch/Fill and Crosshatch

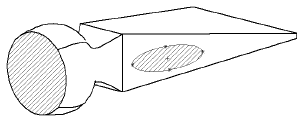

Area hatch on model face and in sketched profile.
Solid fill on model face.
Area hatch region bounded by a combination of model edges and sketch entities.
Crosshatch in section view.
Solid fill in section view.
Halo of space surrounds dimensions and annotations for better visibility.
