Dimension Other PropertyManager
In the Dimension Other PropertyManager,
you can specify the display of dimensions.
If you select multiple dimensions, only the properties that apply to all
the selected dimensions are available.
Override Units
Overrides the document's units defined in the Units
options. Specify the unit type for the selected dimension.
The available options depend on the type of
dimensions that you selected. For example, an Angular
Unit can be Degrees, Deg/Min,
Deg/Min/Sec,
or Radians.
|
|
|

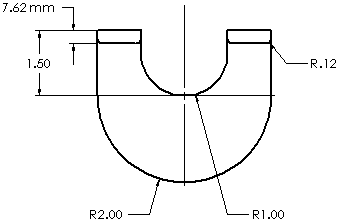

The mm suffix was appended to the dimension text manually. |
Text Fonts
Dimension font. Specifies the
font used for the dimension. Either select Use
document font, as defined in Document Properties - Dimensions,
or clear this check box and click
to select a new font type, style, and size for the selected items.
Tolerance font. Specified the
font used for the tolerance dimension. Select Use
dimension font to use the same font as for dimensions. Clear Use dimension font to specify Font scale or Font
height.
Fit tolerance font (For Fit tolerance types only). Select Use dimension font to use the same font
as for dimensions. Clear Use dimension
font to specify Font scale
or Font height.
Options
Read only
Driven.
Specifies that the dimension is driven by other dimensions and conditions,
and cannot be changed.
Routing
Available for SolidWorks Routing. See SolidWorks Routing Help for more
information.
Use centerline dimension. Calculates
the distance from the centerline.
Include covering thickness.
When selected, calculates the offset distance
from the outer surface of the covering.
When cleared, calculates the distance from the
outer surface of the pipe. The covering thickness is ignored.
Layer
In drawings with named layers, select a layer for the selected dimension.
