Example of Flex Twisting

Initial part

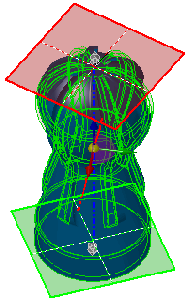

Position the trim planes and triad by dragging them or by setting values in the PropertyManager.

To set the amount of twist, move the pointer over a trim plane edge to display the pointer, then drag the plane. You can also set an Angle in the PropertyManager.

Result of twist
