Preview Intermediate Sweep Sections

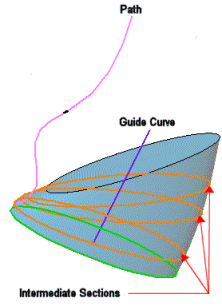

Intermediate sections in a sweep incrementally preview the section, as the section follows the trajectory set by the path and guide curves.

To view the intermediate sections in the sweep:

NOTE: You can activate this option before creating the sweep.

  1. Right-click the Sweep feature in the FeatureManager design tree and select Edit Feature.

  2. Under Guide Curves, click Show Sections .

  3. Click the Up and Down arrows to scroll through the previews.
