Show Component Configuration Descriptions
You can display component configuration descriptions in the FeatureManager
design tree in part, assembly, and drawing documents and in the ConfigurationManager
of parts and assemblies.
To show component configuration descriptions:
At the top of the FeatureManager design tree, right-click the part,
assembly, or drawing name, and select Tree
Display, Show Component Configuration
Descriptions.

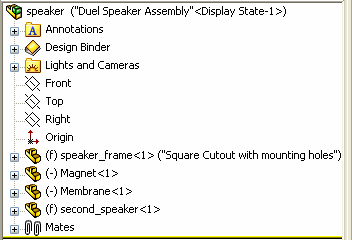

By default, component configuration descriptions
are the same as the component configuration names and are not displayed.
You must specify new component configuration descriptions for them to
appear in the FeatureManager design tree. You change a component configuration
description in the part file.
|
![](../art_local/Show_Component_Config_Description.gif)
|
