Routing Options in Isolate

You now have routing-specific actions available in the Isolate command.

Right-click the piping assembly in the FeatureManager® and select Isolate.

Make your selection in the Isolate dialog box. As an example, if you select Route only then the route will be isolated. If you select Route and direct references then the route and any object it is connected to will be isolated. Other options are:
  • Route and secondary references
  • Route bounding box
  • Route segments bounding box

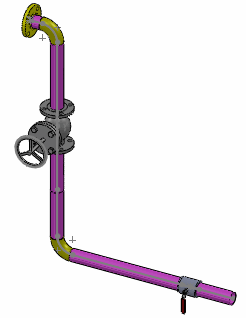

In the image below, the Isolate command is used to isolate a route.



Parent topic: Routing
