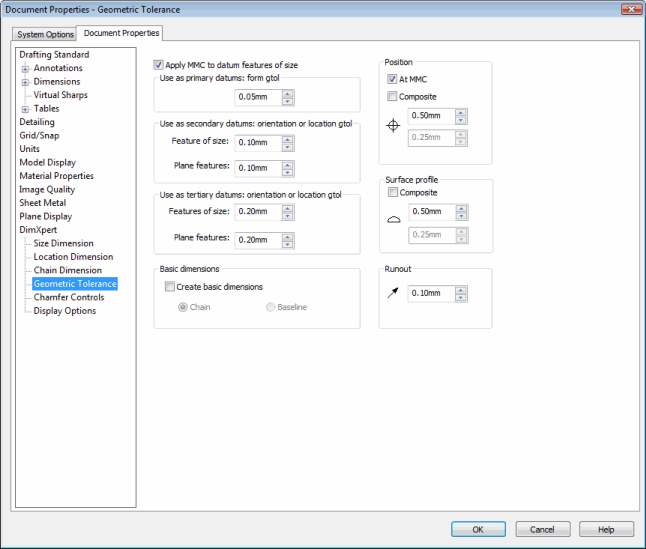

Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
|
Apply MMC to datum features of size |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricApplyMMC,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricApplyMMC,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether an MMC
(maximum material condition) symbol is placed in the datum fields when the datum
feature is a feature of size |
|
Use as primary datums: form gtol |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricPrimaryTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricPrimaryTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Sets the tolerance value for
the form tolerances that are applied to primary datum features |
|
Use as secondary datums: orientation or location
gtol - Feature of size |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSecondFeatureSizeTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSecondFeatureSizeTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Sets the tolerance value for the
orientation and location tolerances that are applied to secondary datum features |
|
Use as secondary datums: orientation or location
gtol - Plane features |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSecondPlaneFeatureTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSecondPlaneFeatureTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Sets the tolerance value for the
orientation and location tolerances that are applied to secondary datum features |
|
Use as tertiary datums: orientation of location
gtol - Features of size |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricThirdFeatureSizeTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricThirdFeatureSizeTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Sets the tolerance value for the
orientation and location tolerances that are applied to tertiary datum features |
|
Use as tertiary datums: orientation or location
gtol - Plane features |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricThirdPlaneFeatureTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricThirdPlaneFeatureTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Sets the tolerance value for the
orientation and location tolerances that are applied to tertiary datum features |
|
Basic dimensions - Create basic dimensions |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricCreateBasicDimension,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricCreateBasicDimension,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to enable the
creation of basic dimensions |
|
Basic dimensions - Create basic dimensions - Chain
or Baseline |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricBasicDimensionChain,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricBasicDimensionChain,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to use chain or
baseline dimension schemes when the creation of basic dimensions is enabled;
true to use chain, false to use baseline |
|
Position - At MMC |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricPositionAtMMC,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricPositionAtMMC,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to place an MMC
symbol |
|
Position - Composite |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricPositionComposite,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricPositionComposite,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to create
composite position tolerances |
|
Position - Tolerance |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricPositionTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricPositionTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Sets position MMC or position
composite tolerance |
|
Position - Composite - Tolerance |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricPositionCompositeTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricPositionCompositeTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Sets position composite tolerance
|
|
Surface profile - Composite |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricSurfaceProfileComposite,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertGeometricSurfaceProfileComposite,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to use tolerance
values and criteria when creating surface profile tolerances |
|
Surface profile - Tolerance |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSurfaceProfileTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSurfaceProfileTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Sets surface profile tolerance
|
|
Surface profile - Composite - Tolerance |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSurfaceProfileCompositeTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricSurfaceProfileCompositeTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Sets composite profile tolerance |
|
Runout |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricRunoutTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertGeometricRunoutTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Sets the tolerance to use when
creating runout tolerances |
