File > Open > Files of type > type of file > Options > STL/VRML

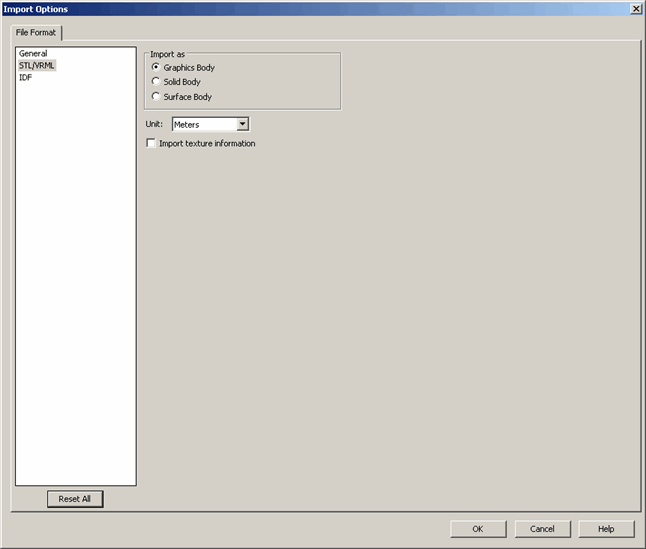

The Import Options - File Format - STL/VRML dialog is displayed when you click the Options button after selecting one of the following types of files in Files of type in the Open dialog:

STL
VRML

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment
Import as - Graphics body	ISldWorks::GetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType) ISldWorks::SetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType, swImportStlVrmlModelType_e.swImportStlVrmlModelType_Graphics)	swImportStlVrmlModelType_e.swImportStlVrmlModelType_Graphics
Import as - Solid body	ISldWorks::GetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType) ISldWorks::SetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType, swImportStlVrmlModelType_e.swImportStlVrmlModelType_Solid)	swImportStlVrmlModelType_e.swImportStlVrmlModelType_Solid
Import as - Surface body	ISldWorks::GetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType) ISldWorks::SetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType, swImportStlVrmlModelType_e.swImportStlVrmlModelType_Surface)	swImportStlVrmlModelType_e.swImportStlVrmlModelType_Surface
Unit	ISldWorks::GetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType) ISldWorks::SetUserPreferenceIntegerValue(swUserPerferenceIntegerValue_e.swImportStlVrmlModelType, swLengthUnit_e.<Value>)	Valid options from swLengthUnit_e: 0 = swMM (millimeters) 1 = swCM (centimeters) 2 = swMETER 3 = swINCHES 4 = swFEET
Import texture information	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportStlVrmlTextureInformation) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportStlVrmlTextureInformation, <OnFlag>)	Boolean value

Search 'File > Open > Files of type > type of file > Options > STL/VRML ' in the SOLIDWORKS Knowledge Base.
