First Angle and Third Angle Projection

Standard 3 Views are in either third angle or first angle projection. In third angle projection, the default front view from the part or assembly is displayed at the lower left, and the other two views are the top and right views. In first angle projection, the front view is displayed at the upper left and the other two views are the top and left views. For information about setting the default projection, see Sheet Properties.

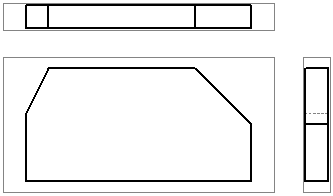

3rd angle projection

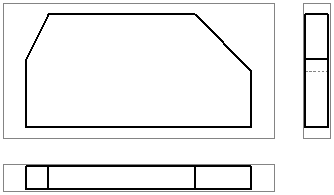

1st angle projection
