Break Corner/Corner-Trim

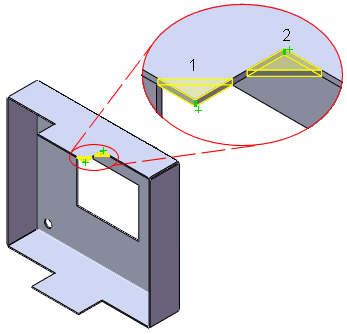

The Break Corner/Corner-Trim tool cuts or adds material to a folded sheet metal part on an edge or a face.

1. External corner: cut material
2. Internal corner: Add material

To create a break corner:

  1. Create a sheet metal part.

  2. Click Break-Corner/Corner-Trim (Sheet Metal toolbar) or click Insert, Sheet Metal, Break Corner.

  3. In the Break Corner PropertyManager, under Break Corner Options:

    1. Select Corner Edges and/or Flange Faces .

    2. Select a Break type: Chamfer or Fillet .

    3. Set a value for Distance (Chamfer) or Radius (Fillet).

  4. Click .
