Example of Setback Fillet Preview

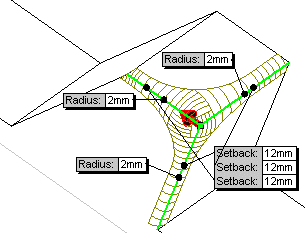

Setback fillet shown with Full preview , and with the same setback Distance of 12mm applied to all three edges.

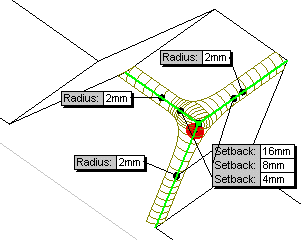

Setback fillet shown with Full preview , and with a different setback Distance applied to all three edges.

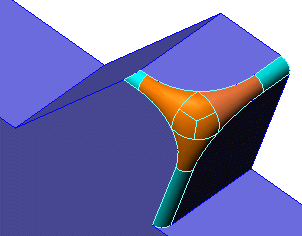

Setback Distance uniform for all edges (12mm)

Setback Distance different for all edges (4mm, 8mm, and 12mm)
