Show Component Configuration Names

You can display component configuration names in the FeatureManager design tree.

To show component configuration names:

At the top of the FeatureManager design tree, right-click the part, assembly, or drawing name, and select Tree Display, Show Component Configuration Names.

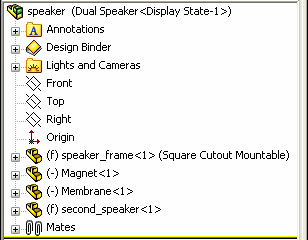

The FeatureManager design tree displays the component configuration names.
