In an open part, click Thickness Analysis (Tools toolbar) or Tools, Thickness Analysis.
In the PropertyManager, under Analysis Parameters:
Set a value for Target thickness .
Select Show thin regions.
Under Color Settings:
Set the color range:
Select Full color range to show the part in various colors shown in the Thickness scale.
- or -
Clear Full color range then click Edit Color to show the part in different shades of the Target thickness color and Minimum thickness color.
Select a Thickness scale display option:
Continuous. Uses a gradient range.
Discrete. Uses a discrete number of color bands. Set a value.
(Optional) Under Performance/Accuracy:
If the part is a multibody part, select a body in the graphics area. Thickness Analysis can be performed on only one body at a time. The body name appears under Body for analysis .
Select faces in the graphics area to perform Thickness Analysis on the selected entities only. The face names appear under Faces for local analysis .
Move the Resolution slider to adjust the color precision used for the results. Higher resolution settings take a longer time to calculate the results.
Click Calculate.

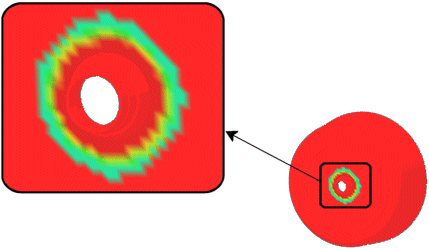

The part is displayed in various shades to indicate the different thicknesses.
Drag the pointer over the part to see the tooltip display thickness values.
Select Show thick regions.
Set a value for Thick region limit to define the upper limit of the thickness range.
If necessary, select Treat corners as zero thickness to disregard sharp corners of the part as thin. All corners are treated as having uniform thickness.
Clear Full color range then click Edit Color to show the part in different shades of the Target thickness color and Thick region limit color.
Use the Thickness Analysis utility to determine different thicknesses of a part.
To display thin regions of a part:
To display areas of a part that are less than and greater than a specified thickness range:
