Freezing Features

You drag the freeze bar to freeze features.

  1. Move the pointer over the freeze bar.

    The pointer changes to FRZ_freeze_pointer.gif.

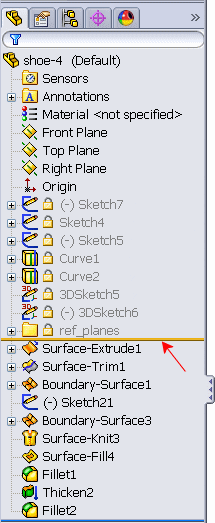

  2. Drag the freeze bar down below ref_planes FM_folder.gif.


    When the freeze bar is at the top of the tree, you can also right-click a feature and click Freeze to freeze that feature and all features above it in the FeatureManager design tree.

    Features above the freeze bar are frozen – you cannot edit them, and they are excluded from rebuilds of the model. Frozen features are indicated by an icon FM_freeze.gif and gray text.
