Auto-spacing Bodies

You can evenly space exploded groups of bodies.

  1. In the graphics area, select the other gusset, the right-most structural member, and the end cap.


  2. In the PropertyManager, under Options, select Auto-space Solid Bodies after drag.

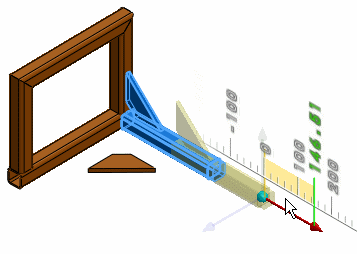

  3. Drag the red handle of the triad to position the bodies as shown.


    When you drop the group of bodies in the position shown, one remains where you drop it, and the software automatically spaces the others further along the same axis.

  4. Click PM_OK.gif.
