Datum Target PropertyManager
Attach a datum target and associated symbol to a model face or edge.
Settings
Target symbol. Select the target symbol style:
-
 Target symbol
|
|
|
|
|
-
 No target symbol
|
|
|
Target area. Select the target area display:
-
 X target area (point)
|
|
|
|
|
|
|
|
|
|
|
|
Target area size  . Specify Width and Height (for rectangles) or Diameter (for X's and circles).
|
|
|
| |

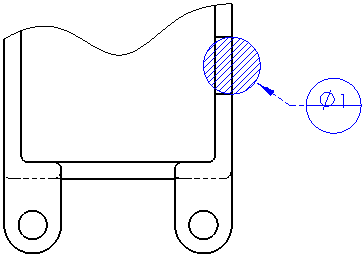

The value in the first field (2) controls the diameter of the target area circle.
|

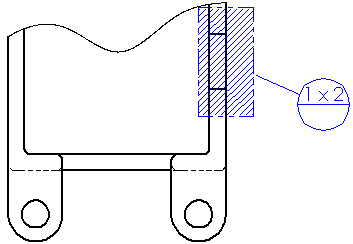

The value in the first field (1) controls the rectangle width. The value in the second field (2) controls the height.
|
|
|

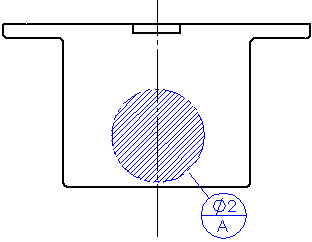

Datum references  . Specify up to three references (balloons). The datum reference appears in the lower half of the balloon.
|
|
Leader
|
Select a leader style to control bends, leader font, and arrowhead styles:
 Bent, solid leader
 Bent, dashed leader
 Straight, solid leader
 Straight, dashed leader
Select an Arrow style.
|
|
Layer
In drawings with named layers, select a layer.
