Displaying a Virtual Sharp
A virtual sharp creates a sketch point at the virtual intersection point of two sketch entities. Dimensions and relations to the virtual intersection point are retained even if the actual intersection no longer exists, such as when a corner is removed by a fillet or chamfer.

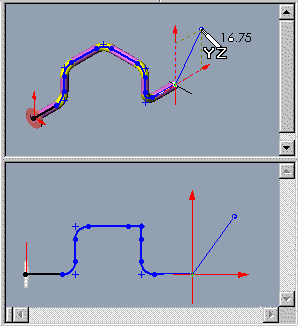

To display the virtual sharp intersections in the sketch, click .
