Using Spline Handles

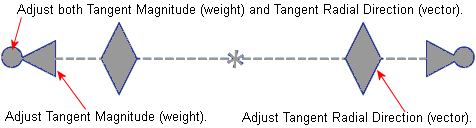

A spline handle includes multiple handle types to control the weight and direction (vector) of the spline at that point. You can control weight and direction:
Handle colors indicate the status of the operation.
|
Handles
|
Status
|
Results - the handle:
|
|
|
|
|
Inactive
|
is not selected.
|
|
|
|
|
Selected
|
was selected, but no motion has occurred.
|
|
Active
|
was moved, and the operation is still in process.
|
|
|
|
|
Activated
|
was moved and the operation is at rest in its new position.
|
|
|
|
|
Constrained
|
includes constraining dimensions or relations.
|
Back to Editing Splines
