Example of Deform Region

Both examples use the same initial face to deform with Deform distance = 10 and Deform radius = 100.

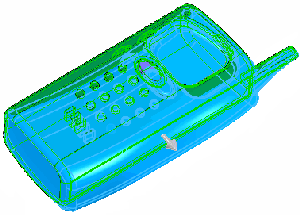

Preview showing Deform region selected with no fixed edges or faces selected

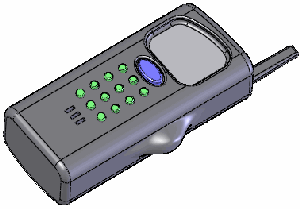

Results with Deform region selected

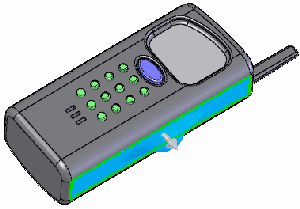

Preview showing Deform region cleared

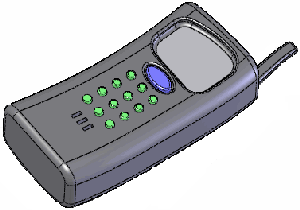

Results with Deform region cleared
