Datum Target PropertyManager

Attach a datum target and associated symbol to a model face or edge.

Style

Settings

Target symbol. Select the target symbol style:

  • Target symbol

  • Target symbol with area size outside. Creates a leader to the balloon.



  • No target symbol

Target area. Select the target area display:

  • X target area (point)

  • Circular target area. Applies crosshatch to the circular target area.

  • Rectangular target area. Applies crosshatch to the rectangular target area.

  • Do not display target area

Target area size . Specify Width and Height (for rectangles) or Diameter (for X's and circles).

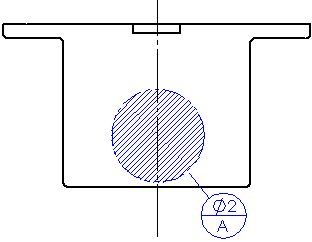

The value in the first field (2) controls the diameter of the target area circle.

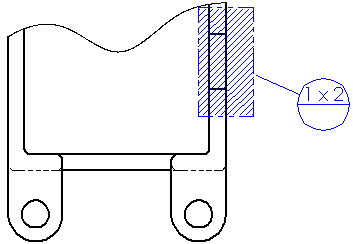

The value in the first field (1) controls the rectangle width. The value in the second field (2) controls the height.



Datum references . Specify up to three references (balloons). The datum reference appears in the lower half of the balloon.

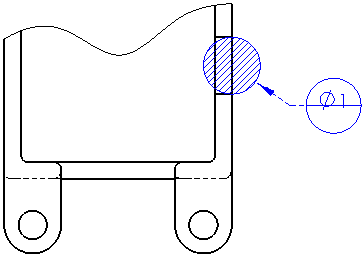

Leader

Select a leader style to control bends, leader font, and arrowhead styles:

Bent, solid leader

Bent, dashed leader

Straight, solid leader

Straight, dashed leader

Select an Arrow style.

Layer

In drawings with named layers, select a layer.
