DimXpert Options

Allows you to set options for chamfers, slots, and fillets for use with the DimXpert tool.

To set DimXpert options:

  1. In a drawing, click Options (Standard toolbar) or Tools, Options.

  2. On the Document Properties tab, click DimXpert.

  3. Set the options described below, then click OK.

Chamfer dimension scheme

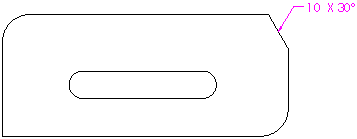

Distance X Angle

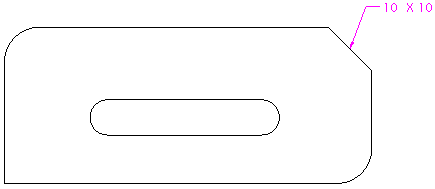

Distance X Distance

Slot dimension scheme

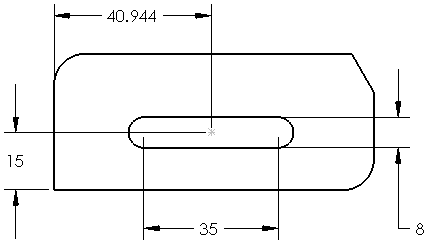

Center to Center

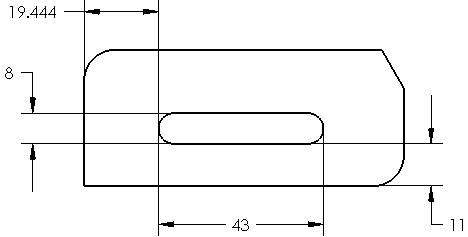

Overall Length

Fillet and Chamfer options

Typ. Inserts single or multiple dimensions to fillets or chamfers of the same size. The designation TYP appears after the dimension.



Instance count. Displays the number of instances of fillets or chamfers of the same size.

None. Dimensions each fillet or chamfer regardless if they are the same size.
