Punch Tables

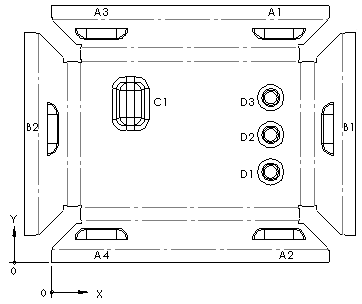

You can insert a punch table in the flat pattern view of sheet metal parts in drawings.

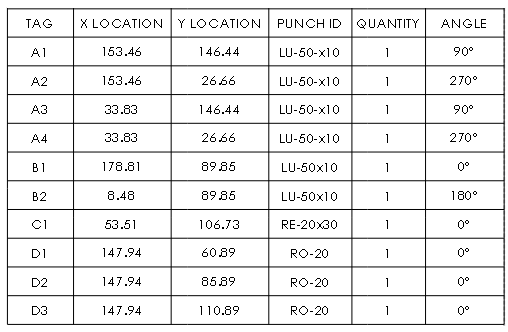

Punch tables contain the form features and library features used in sheet metal bodies including:

Tag: Annotation added to each punch feature in the flat pattern
X Location: Distance from X-axis to the point of insertion of the tool
Y Location: Distance from Y-axis to the point of insertion of the tool
Punch ID: Property of the forming tool/library feature used in the component
Quantity: Number of times form/library feature is used in the flat pattern
Angle: Angle between X-axis and the tool

Setting Punch Table Properties
Assigning Punch IDs
You can add punch IDs to forming tools for easier identification in punch tables.
Inserting Punch Tables
Punch Table PropertyManager
Specify properties for punch tables in drawings.
